Baja Designs RTL-M Mini 6-Inch LED Rear Light Bar, Red Running/Brake, White Cargo and Plate Light, No Harness

Add compact rear lighting where space is limited with the Baja Designs 100601 RTL-M Mini. This nominal 6-inch bar combines red running/brake lighting, central white cargo/scene lighting and an included license-plate illuminator. Use the white lights to illuminate gear or your camp area while the red LEDs provide rear-facing running and brake functions.

Configuration and contents

• One RTL-M Mini LED rear light bar with license-plate light
• Five red LEDs described for running and brake functions
• Two central white LEDs described for cargo and scene lighting
• Black housing
• Stainless-steel mounting hardware included
• Wiring harness not included
• Manufacturer part number and store SKU: 100601

Shared marketing calls the license-plate illuminator optional across the RTL-M family. This exact SKU's extended description and specifications explicitly identify the version that includes the plate light. Universal license-plate and Jeep JK spare-tire mounts are associated accessories, not included vehicle-specific mounting kits.

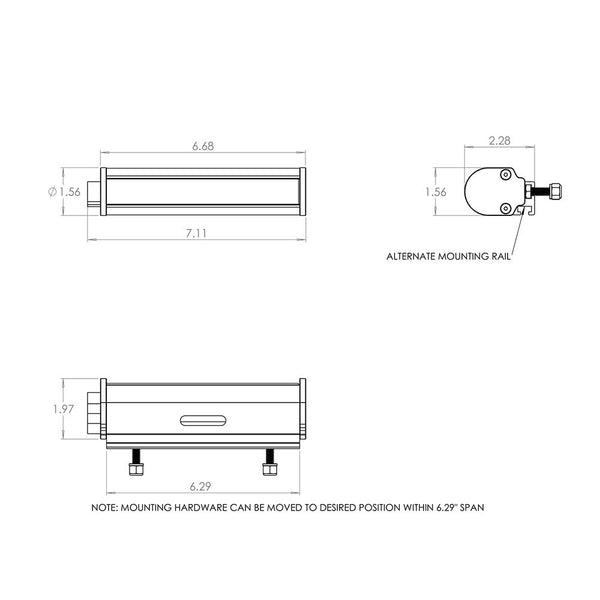

Physical specifications

• Length: 6.69 inches
• Height: 1.56 inches
• Depth: 2.5 inches
• Weight: 1.1 lb
• Manufacturer-listed average rated life: 49,930 hours

The 6-inch designation is the nominal model size; 6.69 inches is the detailed physical length. These measurements describe the light, not its shipping box.

Output and electrical details

• Manufacturer-listed brightness: 312 lumens; the record does not identify which function this figure measures
• Brake function: 5.5W
• License-plate function: 2W
• Tail-light function: 0.75W
• Built-in overvoltage protection

The source also lists 8.5W with the garbled label “Carbo.” Marketing identifies cargo lighting, but the unclear label is not treated as a verified cargo-mode rating. Input voltage and amperage are not specified. A generic lighting-quantity field lists five, whereas marketing separately describes five red LEDs and two central white LEDs; no complete total including the plate illuminator is inferred.

Manufacturer-listed durability

• IP69K; described as waterproof up to 9 feet and pressure washable
• IK10 mechanical-impact compliance
• Exceeds MIL-STD810G testing, according to the manufacturer

Universal installation and separate accessories

The manufacturer describes a universal application suitable for space-limited setups such as Jeeps, motorcycles, UTVs and ATVs. Universal does not mean direct-fit or plug-and-play for every vehicle. Confirm mounting clearance, electrical compatibility and the intended running/brake/cargo/plate connections before installation.

Separately listed accessories include wiring harness 640605, spare-tire mount kit 107003, license-plate mount kit 107004, anti-theft hardware kit 660302 and tamperproof nut kit 660303. None is represented as included with this bar.

The manufacturer marks this product as street legal, but the record does not identify a specific road-lighting certification. Confirm suitability for your vehicle, installation and intended use rather than treating it as a universally approved replacement for required factory lamps.

Manufacturer coverage

Baja Designs lists a 30-Day Money Back Satisfaction Guarantee and Limited Lifetime Warranty, subject to the manufacturer's terms.
