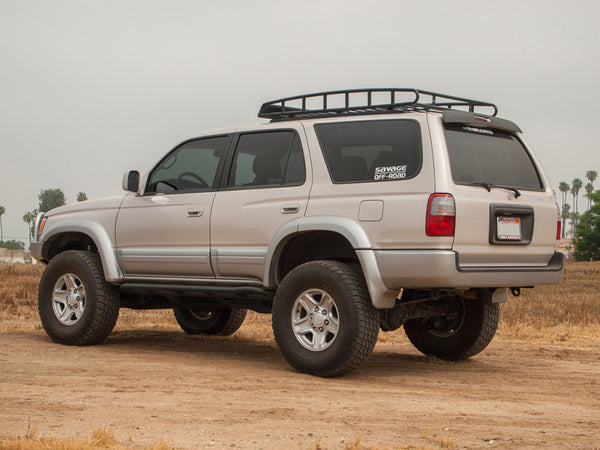

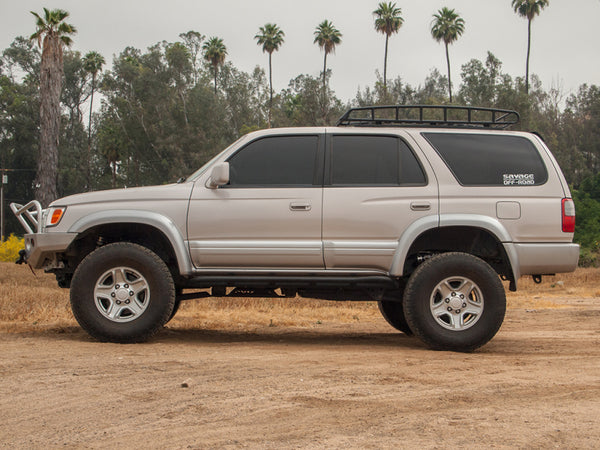

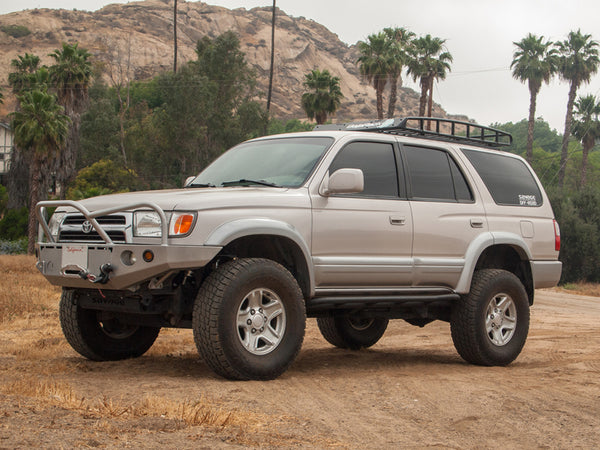

ICON 96-02 4Runner 0-3in Stage 1 Suspension System

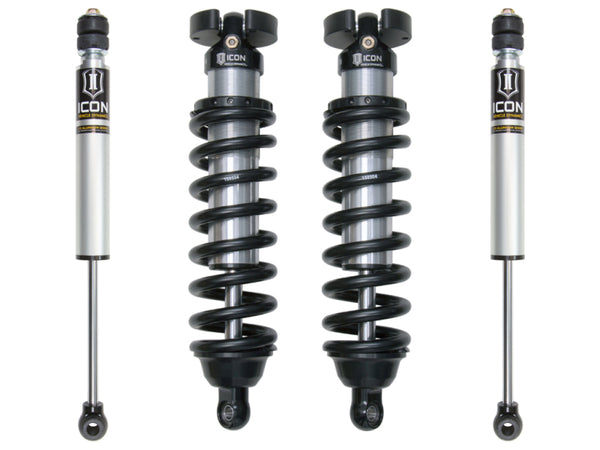

The 1996-2002 Toyota 4Runner was an excellent vehicle off the showroom floor over a decade ago, and Toyota’s reputation for reliability and performance continues to draw the attention of both hardcore off-road enthusiasts and newcomers to the “3rd Gen” platform to this day. ICON engineers have assessed the 3rd Gen 4Runner front to back and developed components that work together to extract maximum performance out of the vehicle. With the ICON Stage 1 suspension system on and off-road performance is significantly improved with 2.5 VS Series coilovers and 2.0 Aluminum Series rear shocks. These components feature ICON engineered coil springs, vehicle-specific shock valving, FK Rod End bearings, and high-quality CNC-machined components for superior damping and control. Fully serviceable shock absorbers mean that these components can be rebuilt or re-valved as necessary, providing a long service life and the ability to customize the ride quality for unique vehicle setups. The 2.5 VS Series coilovers are height adjustable from 0-3” of lift, allowing the use of larger, more aggressive wheel and tire combinations. ICON Vehicle Dynamics' 1996-2002 4Runner Stage 1 suspension system is an excellent choice for those drivers looking to enhance the handling characteristics of their 3rd Gen on the road while increasing overall performance in the dirt. ICON 4Runner suspension systems are designed with maximum performance and the serious driver in mind. ICON'S primary focus is increased wheel travel and damping ability, translating into outstanding control and ride quality on and off-road. APPLICATION NOTE #111: BUMP STOP SPACER KIT AVAILABLE THAT CAN BE INSTALLED TO INCREASE THREADS SHOWING BEYOND MAX RECOMMENDATION.

• Vehicle-specific tuned front and rear shocks provide superior damping and control
• Corrosion resistant CAD plated coilover shock body with 7/8" shaft
• FK Rod End bearings for extended longevity and minimal deflection
• CNC machined 6061 aircraft-grade aluminum components
• Increased wheel travel and ride quality over stock
• Coilovers are adjustable from 0-3" of lift height
• Bolt-on design makes for straightforward install
• Shocks are fully rebuildable and revalveable
• Decreased body roll

Fitment:
Toyota 4Runner Base 1996
Toyota 4Runner Base 1997
Toyota 4Runner Base 1998
Toyota 4Runner Base 1999
Toyota 4Runner Base 2000
Toyota 4Runner Base 2001
Toyota 4Runner Limited 1996
Toyota 4Runner Limited 1997
Toyota 4Runner Limited 1998
Toyota 4Runner Limited 1999
Toyota 4Runner Limited 2000
Toyota 4Runner Limited 2001
Toyota 4Runner Limited 2002
Toyota 4Runner SR5 1996
Toyota 4Runner SR5 1997
Toyota 4Runner SR5 1998
Toyota 4Runner SR5 1999
Toyota 4Runner SR5 2000
Toyota 4Runner SR5 2001
Toyota 4Runner SR5 2002

Air Freight Prohibited: false
Not Carb Approved: false
Ltl Freight Required: false
Prop 65: Unknown
Part Type: automotive
Epa: N/A
Carb Acknowledgement Required: false
Regular Stock: t
Units Per Sku: 1
