Bilstein B8 5100 Front and Rear Shock Kit
This four-shock package combines ride-height-adjustable front shocks with rear replacement shocks for compatible 2010–2024 Toyota 4Runner applications. This complete package excludes TRD Pro models.
Included components
- Two 24-328258 front shocks — provide 0–2.5 inches of front lift on the listed applications
- Two 33-313146 rear shocks — accommodate 0–2 inches of existing rear lift on listed 4WD applications, or 0.5–2 inches on listed RWD applications
Vehicle fitment
Confirm the exact year, trim, drivetrain and suspension configuration in both manufacturer application tables. Applicable front rows include select SR5, Trail and TRD Off-Road configurations and their listed variations; a general 2010–2024 model-year match alone is not sufficient.
Does not fit TRD Pro as a complete kit. Rear-shock fitment alone does not establish compatibility for the front pair. This listing does not establish Limited/X-REAS suspension conversion compatibility.
Front ride-height adjustment
The 24-328258 front shocks provide selectable spring-seat positions for 0–2.5 inches of front lift with the original-equipment coil springs, subject to Bilstein's installation instructions. Only the fronts provide ride-height adjustment.
This is a shock component package, not a preassembled coilover set. New springs and upper mounts are not listed as included. Review assembly and original-component reuse requirements before installation.
Rear suspension-height compatibility
The rear 33-313146 shocks accommodate existing suspension lift; they do not raise or level the vehicle. Listed 4WD applications use a 0–2-inch rear lift range, while listed RWD applications use 0.5–2 inches. Do not assume stock-height RWD compatibility or apply the front 2.5-inch maximum to the rear.
No rear springs, lift spacers or suspension conversion parts are listed as included. Select the rear shocks based on actual rear suspension height.

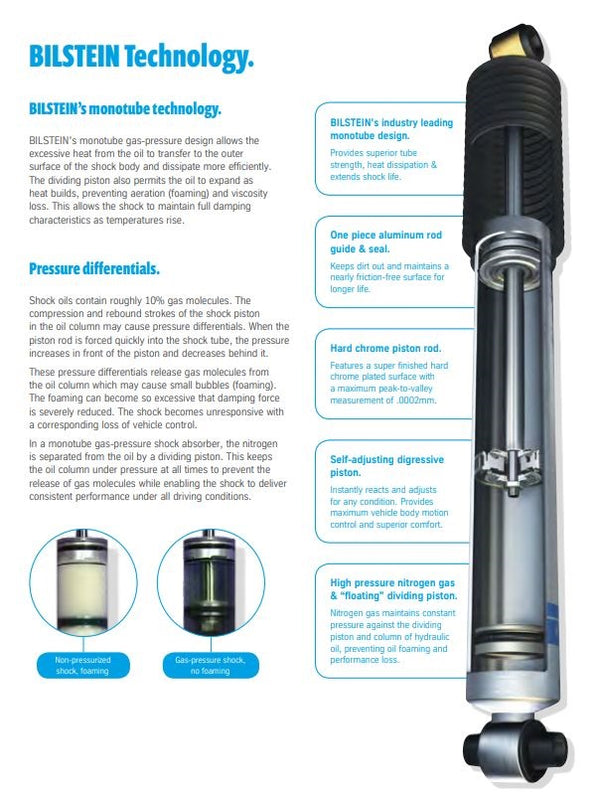

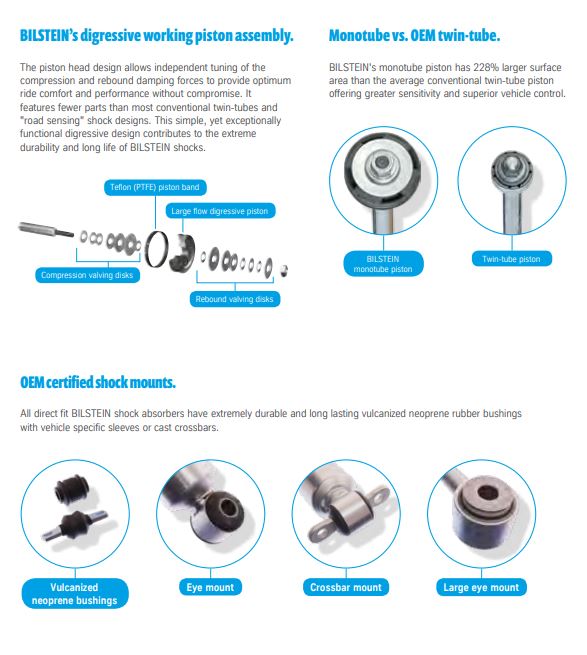

Bilstein 5100 design
Monotube construction and velocity-sensitive digressive damping help control suspension movement as road inputs change. Application-specific tuning supports handling and ride comfort on compatible vehicles.
Manufacturer fitment and installation references
- Front 24-328258 specifications and exact application table
- Rear 33-313146 specifications and exact application table
- Front installation instructions (PDF)
- Rear installation instructions (PDF)
Review all spring-seat, mounting and suspension-clearance requirements before assembly.
