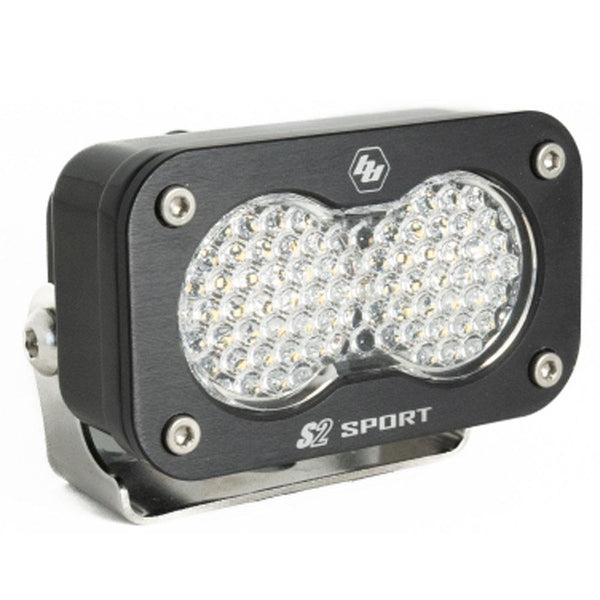

The Baja Designs 540006 S2 Sport is a single compact auxiliary LED light pod with a clear Work/Scene lens and black housing. Its 2.93-inch-long body offers a small mounting footprint for a custom work-area lighting installation, with a manufacturer-listed output of 1,581 lumens. Stainless-steel mounting hardware is included; a wiring harness is not.
Configuration and included contents
- One S2 Sport LED light pod, not a pair
- Clear Work/Scene lens
- Black powder-coated cast aluminum housing
- Two LEDs
- Stainless-steel mounting hardware included
- No wiring harness included
- Universal application; confirm mounting space and electrical compatibility
- Manufacturer part number / store SKU: 540006
The general S2 Sport marketing description discusses fog, cornering, rack and reverse applications. This exact part is the clear Work/Scene configuration, not a Spot, Driving/Combo or Wide Cornering model and not an explicitly documented complete reverse-light kit.
Part-specific specifications
- Listed brightness: 1,581 lumens for the single pod
- Power: 12.42W
- Current draw: 0.9A
- LED quantity: two
- Lighting-modes field: Beam
- Product dimensions: 2.93 inches long × 1.76 inches high × 1.68 inches deep
- Product weight: 0.5 lb
- Average rated life: 49,930 hours
- Built-in overvoltage protection
No operating voltage range, beam-distance figure or additional high/low mode is supplied in this exact record.
Construction and durability
- Powder-coated cast aluminum housing and bezel
- Hardcoated polycarbonate lens
- Stainless-steel mounting hardware
- Manufacturer-listed durability: exceeds MIL-STD810G testing
- Manufacturer-listed impact resistance: IK10
- Manufacturer-listed water resistance: IP69K, described as waterproof up to 9 feet and pressure washable
Wiring and optional accessories
No wiring harness is included. The compatible-products list includes 640117 On/Off wiring, 640093 upfitter wiring, splitters, 640164 Hi/Low wiring and a 640165 10-foot extension. These are separate wiring options, not supplied contents. A Hi/Low harness appearing in the accessory list does not establish built-in high/low modes for this light. Follow the manufacturer's installation instructions for the appropriate connections and controls; no automatic reverse activation is specified.
Rock guards, covers, replacement lens kits and anti-theft hardware are separately listed accessories or associated products. Their alternative colors and patterns do not change the clear Work/Scene configuration supplied with this part.
Manufacturer coverage
Baja Designs lists a Limited Lifetime Warranty and a 30-day money-back Satisfaction Guarantee, subject to its terms.
