Combine rear lighting and integrated turn-signal functions in one universal bar with the Baja Designs 103004 RTL-S. This nominal 30-inch clear-lens model features flashing amber turn signals, running and brake lighting, and a white work/cargo light for illuminating gear or a work area.

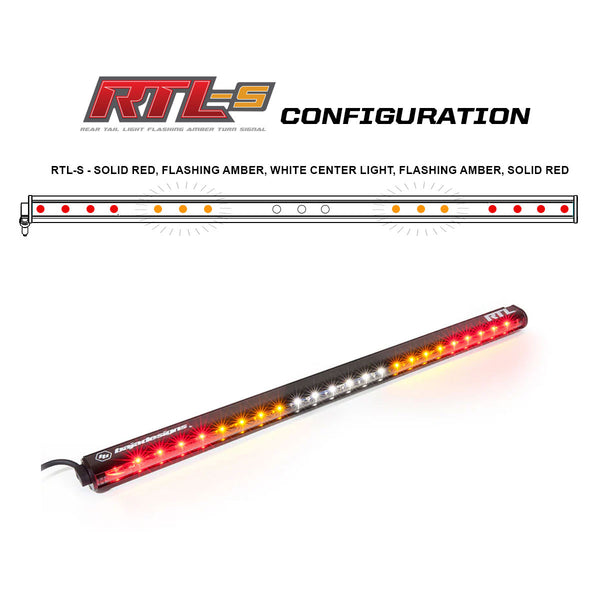

Configuration and contents
- One RTL-S 30-inch LED rear light bar with clear lens
- Integrated flashing amber turn signals
- Running-light and brake-light functions
- White work/cargo light
- Black housing
- Stainless-steel mounting hardware included
- Wiring harness not included
- Manufacturer part number and store SKU: 103004
This is the turn-signal-equipped RTL-S, not the no-turn-signal RTL or RTL-B. Clear describes the lens, not exclusively white emitted light.
Physical specifications and construction
- Length: 32.125 inches
- Height: 1.5 inches
- Depth: 2.15 inches
- Weight: 3.75 lb
- Aircraft-grade aluminum housing with mil-spec hard anodize
- Hardcoated polycarbonate lens
- Manufacturer-listed average rated life: 49,930 hours
The 30-inch designation is the nominal model size; 32.125 inches is the detailed physical length. These measurements describe the bar rather than its shipping package.
Function-specific electrical ratings
- Brake light: 20W / 1.45A
- Running light: source lists 1.1W / 0.8A
- Turn signal: 5W / 0.36A
- White light: 18W / 1.3A
- Built-in overvoltage protection
Running-light specification discrepancy: The listed 1.1W and 0.8A values are inconsistent with the relationship shown by the other function ratings. Both are reproduced as supplied, not silently corrected. Confirm running-light electrical requirements with Baja Designs before circuit sizing. The source does not specify input voltage, lumen output or whether the turn-signal rating is per side. These ratings are not represented as a simultaneous whole-bar total.
Manufacturer-listed durability
- IP69K; described as waterproof up to 9 feet and pressure washable
- IK10 mechanical-impact compliance
- Exceeds MIL-STD810G testing, according to the manufacturer
Universal installation and separate accessories
Confirm mounting clearance, electrical compatibility and the intended running/brake/turn-signal/cargo connections before installation. Universal does not mean direct-fit or plug-and-play for every vehicle. Follow the manufacturer's instructions for function wiring.
Automotive wiring harness 640130 is listed separately as compatible. Anti-theft bolt kit 660302 and tamperproof nut kit 660303 are associated accessories, not included anti-theft hardware.
The manufacturer describes this bar for off-road visibility. The record does not identify road-lighting certification or establish approval as a complete replacement for required factory rear lamps. Confirm suitability for your installation and intended use.
Manufacturer coverage
Baja Designs lists a 30-Day Money Back Satisfaction Guarantee and Limited Lifetime Warranty, subject to the manufacturer's terms.
